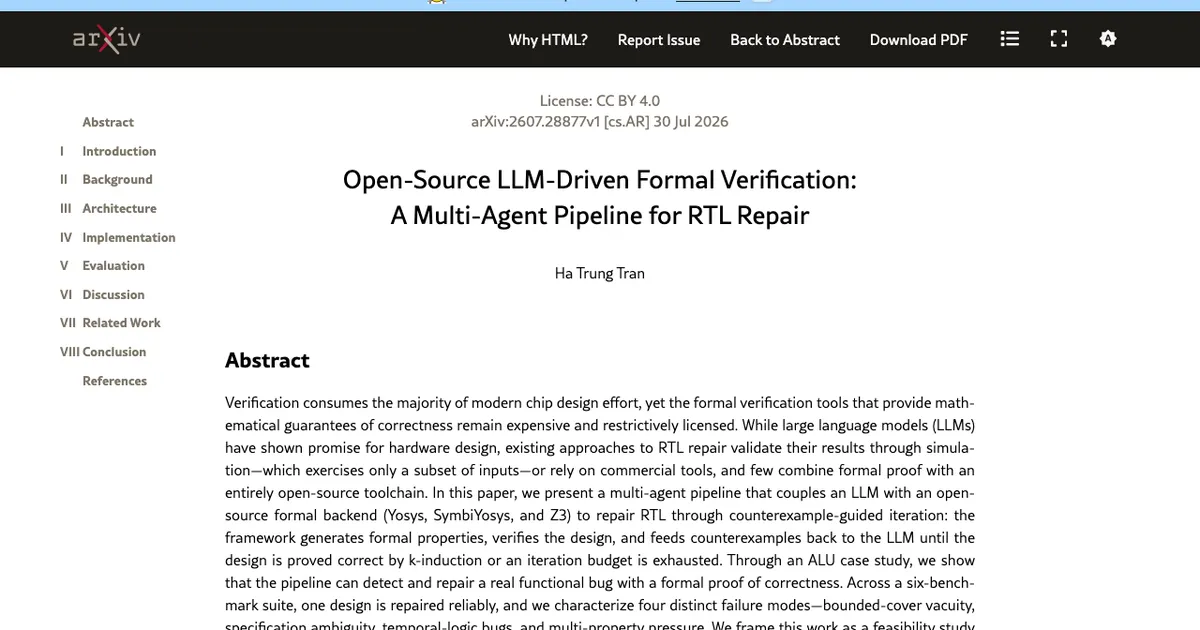

Open-Source LLM-Driven Formal Verification: A Multi-Agent Pipeline for RTL Repair
🚀 Open-Source Breakthrough: Using LLMs for Formal Verification of Chip Designs
Making chips that work reliably is incredibly hard. The most reliable way to prove a chip works—formal verification—is powerful, but it’s often locked behind expensive, restrictive licenses and complex tools.
That changes today. Researchers have unveiled a groundbreaking, open-source approach that marries the predictive power of Large Language Models (LLMs) with rigorous mathematical proof techniques for hardware design. This isn’t just theoretical; it’s a practical pipeline that offers unprecedented accessibility to one of electronics’ most critical fields.
🛠️ The Problem: Why Verification Matters (and Why It’s Hard)
The industry consensus is clear: verification accounts for the majority of modern chip design effort. If your hardware has bugs, they can be disastrous. Traditional formal verification tools provide mathematical guarantees of correctness—meaning if the tool says it works, it must work under all possible inputs. But these tools are historically a paywall.
LLMs have started making waves in generating code and designs (including Register Transfer Level or RTL), but verifying their output usually relies on simulation. Simulation is insufficient because it only tests specific scenarios—it can’t guarantee behavior for all inputs.
🔬 The Solution: A Multi-Agent Proof Pipeline
Researchers presented a novel multi-agent pipeline designed to achieve true formal verification using entirely open-source tools. This system couples an LLM with established, open-source formal backends like Yosys, SymbiYosys, and Z3.
How does it work? It’s an iterative cycle of proof and correction:
- Generation: The process generates initial formal properties (specifications) for the design.
- Verification: The open-source backend rigorously checks the design against these properties.
- Refinement: If a bug is found, the tool provides a counterexample (the specific input that breaks the chip). This counterexample—and the proof of failure—is fed back to the LLM.
- Repair: The LLM uses this precise feedback to iteratively repair the underlying RTL code until the design passes formal proof (e.g., via k-induction) or until its budget runs out.
This closed-loop process ensures that the repaired chip isn’t just ‘simulated’ as working, but mathematically proven correct across all possible inputs.
💡 Key Takeaways & Impact
- Proven Functionality: Using an ALU (Arithmetic Logic Unit) case study, the pipeline successfully detected and repaired a real-world functional bug and provided a formal proof of correctness.
- Deep Analysis: The work went beyond a single example, analyzing four distinct failure modes: bounded-cover vacuity, specification ambiguity, temporal-logic bugs, and multi-property pressure. This level of detail characterizes the field’s hurdles.
- Community Benefit: By relying solely on open-source toolchains, this methodology dramatically lowers the barrier to entry for hardware verification research, making powerful techniques accessible to academia and small teams globally.
This work is a major step toward democratizing critical infrastructure design, shifting reliance away from expensive commercial black boxes. It’s a game-changer for the global semiconductor supply chain.
